DCC Flash Units

DCC’s Flash Units have a universal design that fits most brands’ presses. An adjustable sensor switch can be positioned on either side of the flash cure unit, activating the flash when the printing pallet approaches. It has an automatic cut-off mechanism that safeguards heater components by turning off the lamps when the temperature exceeds a certain threshold. Three flash curing zones can be operated independently or in any combination, with toggle switches Flash cure duration can be controlled by a timer. The flash cure unit ensures consistent curing with a reflector array & forced air heat exchange. Smooth-rolling, locking casters make moving the flash fast & easy.

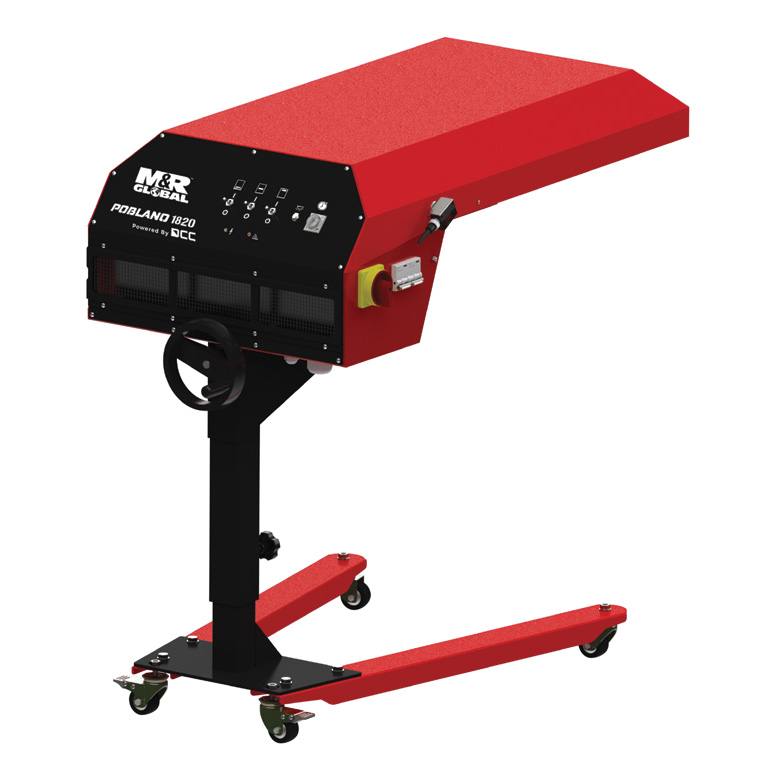

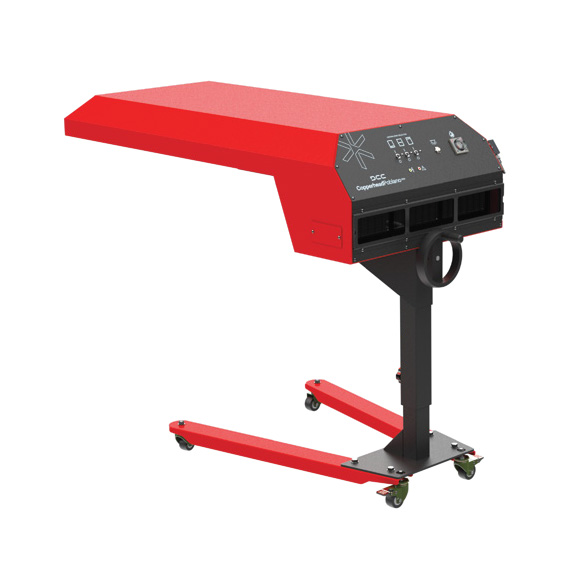

Poblano Flash Cure Unit

  • Universal flash design to fit most brands’ presses/Manual presses
  • High power Medium-wave sealed tungsten filament quartz lamps
  • Test button to use the flash in manual mode
  • Automatic cut-off mechanism that safeguards heater components by turning off, the lamps when the temperature exceeds a certain threshold
  • An adjustable sensor switch can be positioned on either side of the flash cure unit, activating the flash when the printing pallet approaches
  • Three flash curing zones can be operated independently or in any combination, with toggle switches
  • Flash cure duration can be controlled by an analog timer
  • Caster wheels to easily move across different heads

Red Pepper Flash Cure Unit

  • Universal flash design to fit most brands’ presses/Manual presses
  • High power Medium-wave sealed tungsten filament quartz lamps with adjustable intensity
  • An adjustable sensor switch can be positioned on either side of the flash cure unit, activating the flash when the printing pallet approaches
  • Three flash curing zones can be operated independently or in any combination
  • InkSenseTM automatically shuts off the flash cure unit when the substrate reaches operator-set temperature
  • Flash cure duration can be controlled by a digital display
  • Up to 10 receipes can be stored
  • Caster wheels to easily move across different heads
