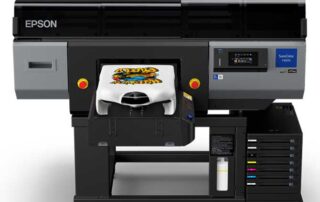

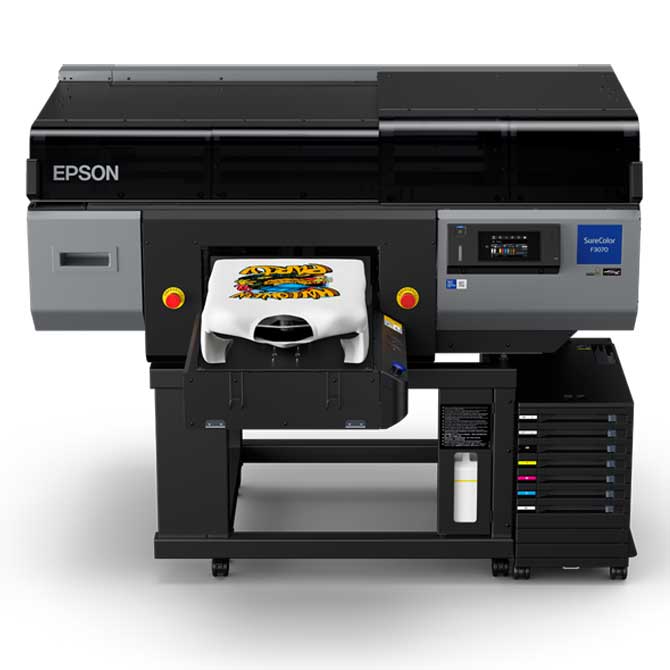

SureColor F3070 DTG Production Edition Printer
The Epson SureColor F3070 Industrial Direct-to-Garment (DTG) Printer is Epson’s first DTG printer to leverage dual printhead technology and a bulk ink pack system, providing remarkably low ink costs and minimized waste.
The Epson SureColor F3070 Industrial DTG printer is the first to feature an Epson Bulk Ink System. Epson UltraChrome® DG inks are durable, vibrant, and safe, with outstanding color performance, plus equal pricing for color and white inks.
Features:
- Dual (2) Advanced PrecisionCore Printheads

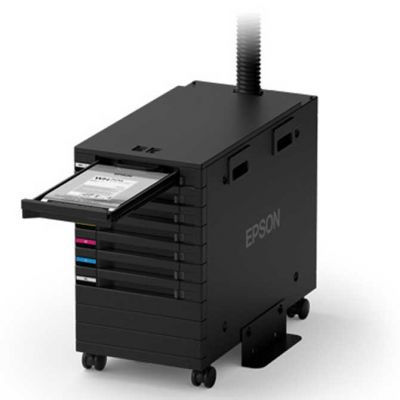

- Bulk Ink System
- Epson UltraChrome DG Inks are RoHS Compliant
- Automatic Printhead Adjustment
- Fast Loading Platen for More Productivity

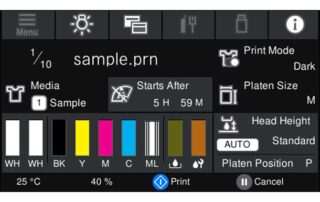

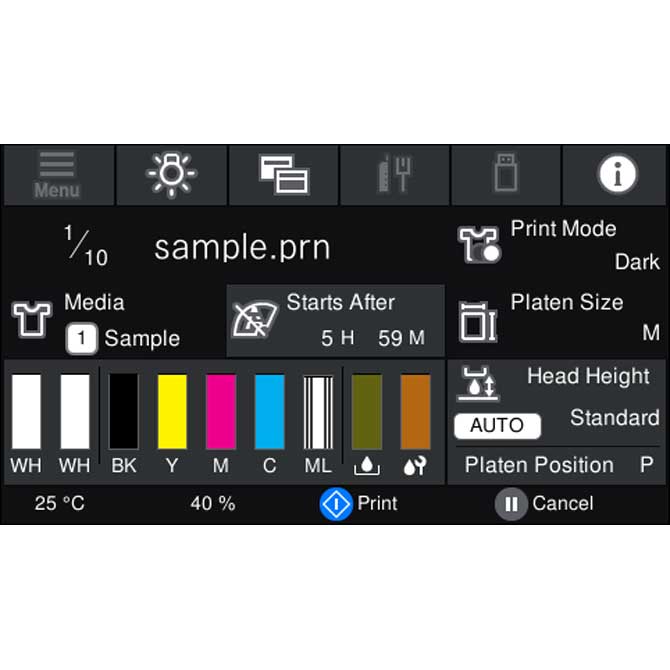

- Intuitive, Easy-to-Learn Workflow
- Seamlessly Scaleability
Specifications:
| Printing Technology: | Dual advanced PrecisionCore microTFP 10-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology |
| Minimum Ink Droplet Size: | Variable Droplet Technology |
| Maximum Print Resolution: | 1200 x 1200 dpi |
| Nozzle Configuration: | 8,000 White ink print nozzles; 6,400 color ink print nozzles |
| Ink | |
| Ink Type: | UltraChrome DG |
| Ink Palette: | Cyan, Magenta, Yellow, Black, White |
| Ink Configuration: | 5-color: C, M, Y, K, W |
| General | |
| Operating Systems: | Windows® 10 and 8.1, macOS 10.12 (Sierra) or later |
| System Requirements: | Garment Creator Software Minimum PC Requirements: Multicore processor, 2GB RAM, 32GB Free Storage Recommended PC Specifications: Intel Core i7 8th generation processor, 16GB RAM, 32GB free SSD storage |
| Temperature: | Operating: 59° to 95°F (15° to 35°C) Operating (recommended): 59° to 77°F (15° to 25°C) |
| Humidity: | Operating: 20 – 80% (no condensation) Operating (recommended): 40 – 60% (no condensation) |
| Eco Features: | Oeko-Tex ECOPASSPORT certified RoHS compliant Recyclable product Epson America, Inc. is a SmartWay® Transport Partner |

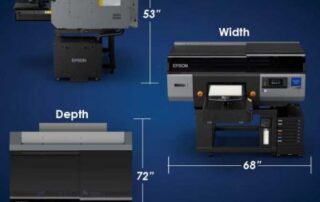

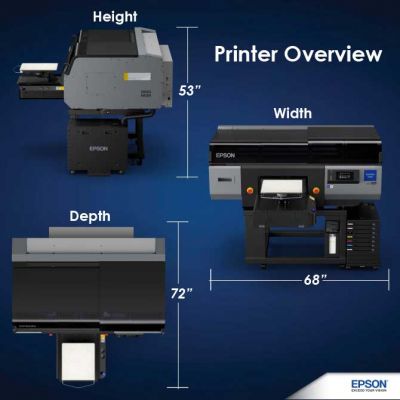

| Estimated Overall Dimensions: | 53″(H) X 68″(W) X 72″(D) |
| Ink Supply System | |
| Ink Supply Fill Volume: | 1,500 mL each pack |
| Ink Shelf Life: | 2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems*. |
| Garment Media Handling | |
| Thickness: | Up to 29.5 mm |
| Printer Details | |
| Printer Language: | Epson ESC/P® raster |
| Interfaces: | Hi-Speed USB 3.0 (1 port) 1000Base-T Ethernet (1 port) |
| Power | |
| Rated Voltage: | AC 100 – 120 V; 200 – 240 V |
| Rated Frequency: | 50/60 Hz |
| Rated Current: | 8.2 A at 100 – 120 V, 4.1 A at 200 – 240 V |
| Power Consumption: | Printing: Approx. 168 W or less Sleep Mode: Approx 20 W Power Off: Approx 1.0 W |
| Power Requirements: | Printer: Requires two outlets |
