AUTOMATIC SCREEN PRINTING PRESS LINEUP

THE SABRE SERIES
The Sabre Series has revolutionized the automatic screen printing press with its integration of touch screen control, Workhorse OS, high-quality design, electric indexing and electric print heads.
LEARN MORE >

THE CUTLASS SE SERIES
The Cutlass SE is an automatic screen printing press designed with the everyday rigors of your print shop in mind.  The Cutlass offers practical, easy to use pneumatic printheads driven by a powerful, efficient and precise electric indexing system.
LEARN MORE >

THE FREEDOM EXPRESS SERIES
The Freedom Express is hands down the best entry level automatic screen printing press with features like Workhorse OS, touch screen control, large print area, small diameter and an economical price point.
LEARN MORE >

THE SABRE SERIES

The hardest working, most comprehensive and feature rich Sabre automatic screen printing press is the best that Workhorse has to offer.  Combining electric indexing and AC print heads, the Sabre is class leading with its long list of features and Workhorse OS innovations.

  • 6, 8, 10, 12 Max Color Options
  • 20″ x 20″ Print Area (12 color has 20″ x 28″)
  • Electric Print Heads & Indexing
  • 6 Color – Electric: 220V, 50-60Hz, 13amps | Air: 100psi, 5cfm
    8 Color – Electric: 220V, 50-60Hz, 13amps | Air: 100psi, 6cfm
    10 Color – Electric: 220V, 50-60Hz, 20amps | Air: 100psi, 7cfm
    12 Color – Electric: 220V, 50-60Hz, 25amps | Air: 110psi, 12cfm

  • Overall Diameter:
    6 Color – 12’6″
    8 Color – 14′
    10 Color – 15’6″
    12 Color – 18′

CONTACT US NOW TO LEARN MORE!

FEATURES

Workhorse OS Touchscreen Interface

With this touch screen display control every aspect of the machine. Including stroke functions, self-diagnostics, and machine updates.

Index System

Patent pending AC/electric indexer
Precision indexing for faster speeds
Zero-delay double indexing Multiple station indexing

Print Heads automatic screen printing press

Printheads

Plug N Go flash capabilities.
Independent print/flood speed controls, on each printhead.
AC/electric driven printheads.

Registration automatic screen printing press

Registration

Compatible with most Pin registration systems
Enhanced front micro- registration adjustments with visual guides.

Squeegee/Floodbar automatic screen printing press

Squeegee/Floodbar

Angle, pressure, and speed adjustments are independently set (tool-free).
Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks).

Central Off Contact automatic screen printing press

Central Off Contact

Operators have the ability to quickly change between different substrates with the fast and easy central off contact feature.

FlashBack Compatible

The patented FlashBack is the only system on the market that allows you to print, flash, and cool all at one station. This means a six color printer can truly print six colors.

Video-SabreAdvTech923

Sabre Series Video

Video-SabreAdvTech923

Orbital Mode

Video-SabreAdvTech923

Owner’s Portal Demo

THE CUTLASS SE SERIES

The Cutlass automatic screen printing press delivers a perfect balance of affordability and performance.  The electric driven indexing with pneumatic print heads combines the fast and smooth indexing of the Sabre with the easy to use and reliable pneumatic print heads of the Freedom all enhanced by the Workhorse OS.

  • 6, 8 Max Color Options
  • 20″ x 20″ Print Area
  • Air Print Heads & Electric Indexing
  • 6 Color – Electric: 220v, 5amps | Air: 110psi, 22cfm
    8 Color – Electric: 220v, 6amps | Air: 110psi, 24cfm

  • Overall Diameter:
    6 Color – 12’6″
    8 Color – 14′

CONTACT US NOW TO LEARN MORE!

FEATURES

Workhorse operating system for automatic screen printing presses

Workhorse OS Touchscreen Interface

With this touch screen display control every aspect of the machine. Including stroke functions, self-diagnostics, and machine updates.

Index System

Patent pending AC/electric indexer
Precision indexing for faster speeds
Zero-delay double indexing Multiple station indexing

Print Heads automatic screen printing press

Printheads

Plug N Go flash capabilities.
Independent print/flood speed controls, on each printhead.
Air driven printheads.

Registration automatic screen printing press

Registration

Compatible with most Pin registration systems
Enhanced front micro- registration adjustments with visual guides.

Squeegee/Floodbar automatic screen printing press

Squeegee/Floodbar

Angle, pressure, and speed adjustments are independently set (tool-free).
Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks).

Central Off Contact automatic screen printing press

Central Off Contact

Operators have the ability to quickly change between different substrates with the fast and easy central off contact feature.

FlashBack Compatible

The patented FlashBack is the only system on the market that allows you to print, flash, and cool all at one station. This means a six color printer can truly print six colors.

Video-SabreAdvTech923

Cutlass SE Video

Video-SabreAdvTech923

Owner’s Portal Demo

Video-SabreAdvTech923

Orbital Mode

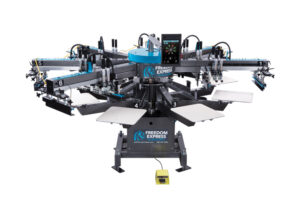

THE FREEDOM EXPRESS SERIES

The Freedom Express leads the way as an entry-level automatic screen printing press.  This fully pneumatic press powered by the Workhorse OS  has everything you need to tackle the transition from manual to automatic printing.

  • 6 Colors/8 Stations
  • 15″ x 15″ Print Area
  • Air Print Heads & Air Indexing
  • Electric: 110V, 50-60Hz, 3amps | Air: 110psi, 23cfm
  • Overall Diameter 10′
CONTACT US NOW TO LEARN MORE!

FEATURES

Workhorse OS Touchscreen Interface

Intuitive software with functions like Sample Print Mode, Missed Shirt Feature and Orbital Mode.
Print Heads automatic screen printing press

Printheads

Plug N Go flash capabilities.
Independent print/flood speed controls, on each printhead.
Air driven printheads.

Registration automatic screen printing press

Registration

Compatible with most Pin registration systems
Enhanced front micro- registration adjustments with visual guides.

Squeegee/Floodbar automatic screen printing press

Squeegee/Floodbar

Angle, pressure, and speed adjustments are independently set (tool-free).
Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks).

Central Off Contact

Operators have the ability to quickly change between different substrates with the fast and easy central off contact feature.

All-Access Control Panel

The control panel is easy to learn and operate. It can be rotated to any print station. This flexibility gives you complete control of the entire machine from anywhere on the press.

FlashBack Compatible

The patented FlashBack is the only system on the market that allows you to print, flash, and cool all at one station. This means a six color printer can truly print six colors.

Video-MachHeads

Freedom Express Video

Video-SabreAdvTech923

Orbital Mode

Video-SabreAdvTech923

Owner’s Portal Demo
